DESIGN FEATURES

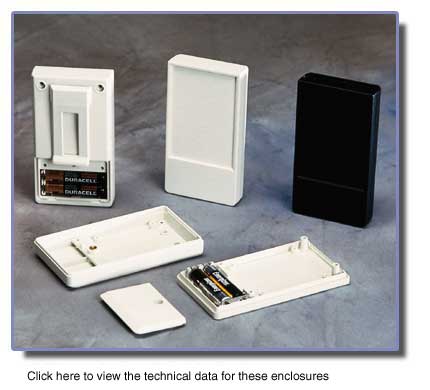

Medium-sized pocket box with optional sealing kit. Recessed control area for membrane keyboards. Screw bosses for mounting PCBs in the top and base. Battery compartment lid screwed down from the outside, for 2 x 1.5V AAA batteries. Interior space of battery compartment separated by rib. Case provided with recessed area. Black
Infra-red versions permeable to Infra-red
signals available.
NEW -Height Expander Strip option increases listed heights by 0.39".
NEW -See Page 9 for two new sizes. |
|
Case shells are assembled by means of 4 self-tapping screws. Mounting of the battery compartment lid by machine screw.
-Belt / Pocket clip
-Battery spacer
-NEMA 4 / IP65 sealing kits
-Height Expander Strip
-Battery clip
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
See Page 39 for Color Chart
Custom colors available
All cases in a fine textured surface.
ABS (UL 94 HB) and PMMA (plexiglass®), permeable to Infra-red light.
Also available in other materials on request.
Custom insert molding within recessed area can significantly reduce machining costs for many applications. An insert area is also available on the top end of the case. Call for minimum quantities.
Modifications Per Customers Requirements and Technical Information
-For accessory information turn to page 35
-For machining information turn to page 37
-For shielding information turn to page 38
-For screen printing information turn to page 39
-For NEMA / IP protection classifications turn to page 40
-For color information turn top page 39
|
