13 New High Profile Designs	9

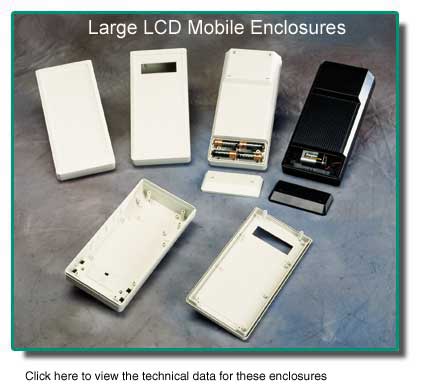

	High Profile LCD Mobile Enclosures

Version Outside Dimensions L x W x H in Inches  Display Cutout in Inches Off-White Case Part Number Black Case Part Number I 9.92" x 4.72" x 2.36" No LCD Opening MBLE-107  MBLE-109 II 9.92" x 4.72" x 2.36" LCD Opening 2.94" x 0.95" MBLE-207  MBLE-209 I 9.92" x 4.72" x 2.75" No LCD Opening MBLE-2107 MBLE-2109 II 9.92" x 4.72" x 2.75" LCD Opening 2.94" x 0.95" MBLE-2207  MBLE-2209 Version Outside Dimensions L x W x H in Inches Display Cutout in Inches Off-White Case Part Number Black Case Part Number I 7.68" x 3.98" x 2.12" none MBME-107  MBME-109 II 7.68" x 3.98" x 2.12" 2.36" x 0.59" MBME-207 MBME-209 III 7.68" x 3.98" x 2.12" 2.44" x 0.51"  MBME-307 MBME-309 IV 7.68" x 3.98" x 2.12" 2.37" x 0.95" MBME-407 MBME-409 V 7.68" x 3.98" x 2.12" 2.87" x 1.04" MBME-507 MBME-509 I 7.68" x 3.98" x 2.51" none MBME-2107 MBME-2109 II 7.68" x 3.98" x 2.51" 2.36" x 0.59" MBME-2207 MBME-2209 III 7.68" x 3.98" x 2.51" 2.44" x 0.51" MBME-2307 MBME-2309 IV 7.68" x 3.98" x 2.51" 2.37" x 0.95" MBME-2407 MBME-2409 V 7.68" x 3.98" x 2.51" 2.87" x 1.04" MBME-2507 MBME-2509 I 6.49" x 3.93" x 1.73" none MBM-607 MBM-609 Version Outside Dimensions L x W x H in Inches Display Cutout in Inches With Battery Compartment Without Battery Compartment       Off-White Part # Black Part # Off-White Part # Black Part # I 5.98" x 3.27" x 1.70"  none MBSE-107 MBSE-109  MBSE-117 MBSE-119 II 5.98" x 3.27" x 1.70" 1.79" x 0.70" MBSE-207 MBSE-209 MBSE-217 MBSE-219 III 5.98" x 3.27" x 1.70" 1.76" x 0.36" MBSE-307 MBSE-309 MBSE-317 MBSE-319 IV 5.98" x 3.27" x 1.70" 1.76" x 0.69" MBSE-407 MBSE-409 MBSE-417 MBSE-419 I 5.98" x 3.27" x 2.10"   none MBSE-2107 MBSE-2109 MBSE-2117 MBSE-2119 II 5.98" x 3.27" x 2.10"  1.79" x 0.70" MBSE-2207 MBSE-2209 MBSE-2217 MBSE-2219 III 5.98" x 3.27" x 2.10"  1.76" x 0.36" MBSE-2307 MBSE-2309 MBSE-2317 MBSE-2319 IV 5.98" x 3.27" x 2.10"  1.76" x 0.69" MBSE-2407 MBSE-2409 MBSE-2417 MBSE-2419

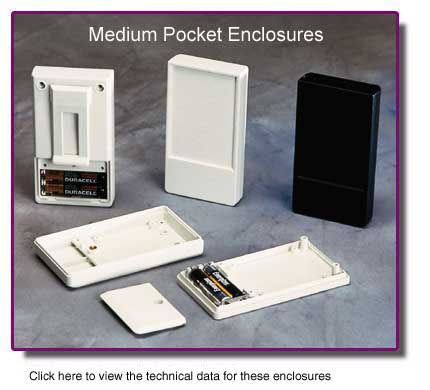

High Profile Pocket Enclosures   Version Outside Dimensions L x W x H in Inches Color Material Part Number I 4.72" x 2.56" x 1.25"  Off-White ABS (UL 94 HB) PBLE-107 I 4.72" x 2.56" x 1.25"  Black ABS (UL 94 HB) PBLE-109 I 4.72" x 2.56" x 1.25"  Black IR Transparent PMMA / ABS PBLE-209 II 4.72" x 2.56" x 1.25"  Off-White ABS (UL 94 HB)  PBLE-127 II 4.72" x 2.56" x 1.25"  Black ABS (UL 94 HB) PBLE-129 II 4.72" x 2.56" x 1.25"  Black IR Transparent PMMA / ABS PBLE-229 I 4.72" x 2.56" x 1.65" Off-White ABS (UL 94 HB) PBLE-2107 I 4.72" x 2.56" x 1.65" Black ABS (UL 94 HB) PBLE-2109 I 4.72" x 2.56" x 1.65" Black IR Transparent PMMA / ABS PBLE-2209 II 4.72" x 2.56" x 1.65" Off-White  ABS (UL 94 HB) PBLE-2127 I 4.72" x 2.56" x 1.65" Black ABS (UL 94 HB) PBLE-2129 II 4.72" x 2.56" x 1.65" Black IR Transparent PMMA / ABS PBLE-2229 Outside Dimensions L x W x H in Inches Color Material Part Number 4.13" x 2.28" x 1.12" Off-White ABS (UL 94 HB) PBLE-107 4.13" x 2.28" x 1.12" Black ABS (UL 94 HB) PBLE-109 4.13" x 2.28" x 1.12" Black IR Transparent PMMA / ABS PBLE-209 4.13" x 2.28" x 1.51 Off-White ABS (UL 94 HB)  PBME-2107 4.13" x 2.28" x 1.51 Black ABS (UL 94 HB) PBME-2109 4.13" x 2.28" x 1.51 Black IR Transparent PMMA / ABS PBME-2209 Version Outside Dimensions L x W x H in Inches Color Material Part Number I 3.35" x 1.81" x 1.02"  Off-White ABS  PBLE-107 I 3.35" x 1.81" x 1.02" Black ABS  PBLE-109 I 3.35" x 1.81" x 1.02" Black IR Transparent PMMA / ABS PBLE-209 II 3.35" x 1.81" x 1.02" Off-White ABS   PBLE-307 II 3.35" x 1.81" x 1.02"  Black ABS  PBLE-309 II 3.35" x 1.81" x 1.02" Black IR Transparent PMMA / ABS PBSE-409 I 3.35" x 1.81" x 1.41" Off-White ABS  PBLE-2107 I 3.35" x 1.81" x 1.41" Black ABS  PBLE-2109 I 3.35" x 1.81" x 1.41" Black IR Transparent PMMA / ABS PBLE-2209 II 3.35" x 1.81" x 1.41" Off-White  ABS  PBLE-2307 I 3.35" x 1.81" x 1.41" Black ABS  PBLE-2309 II 3.35" x 1.81" x 1.41" Black IR Transparent PMMA / ABS PBLE-2409

Enclosures of America International
28045 Ashley Circle #106 Libertyville, IL 60048 U.S.A.
Phone: (847) 918-9800   Fax: (847) 918-9807

© 2004 EAI
