DESIGN FEATURES
- Tested to protection class NEMA 4 / IP65.
- Specially designed case system for pulse generation and receiving.
- NEW - Height Expander Strip option increases listed heights by 0.39".
- Black Infra-red versions permeable to
Infra-red signals.
- Recessed control area for membrane keyboards on top of case.
- Flat areas for CNC machining and keypads.
- Screw bosses for mounting PCBs.
- Internal battery compartment for internal power supply.

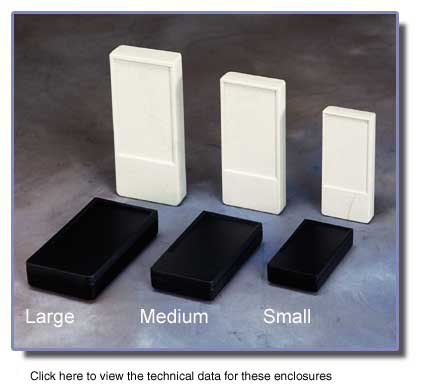

- Available in 3 different sizes without expander strips and 6 sizes with expander strips. Each available in Black, Off-White and Gray (special order).
- Fine textured finish.
- Recessed areas have insert tooling option for custom designs.
|
|
| Three
Sizes |
| |
L |
W |
H** |
| Small* |
3.35" |
1.01" |
0.63" |
| Med. |
4.13" |
2.28" |
0.73" |
| Large |
4.72" |
2.56" |
0.87" |
| Six New Sizes with Height Expander Strip |
| |
L |
W |
H** |
| Small* |
3.35" |
1.81" |
1.02" |
| |
3.35" |
1.81" |
1.41" |
| Med. |
4.13" |
2.28" |
1.12" |
| |
4.13" |
2.28" |
1.55" |
| Large |
4.72" |
2.56" |
1.25" |
| |
4.72" |
2.56" |
1.65" |
* Available with 1 or 3 recessed areas.
** These heights increased by 0.39" using the Height Expander Strip option.
These small pocket boxes are extremely convenient for measuring devices and remote controls, and are also popular in wireless communication and pulse generation applications.
-Belt / Pocket clip
-Battery spacer
-NEMA 4 / IP65 sealing kits
-Height Expander Strip
-Battery clips
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
Gray: Pantone Cool Gray 10C
Special Order
See Page 39 for Color Chart
Custom colors available
All cases available in a fine
textured surface.
ABS (UL 94 HB) and PMMA (plexiglass®), permeable to
Infra-red light.
Other materials available on request
Custom insert molding within recessed area can significantly reduce machining costs for many applications. Call for minimum quantities.
|
