Membrane Keypads, Colors & Painting

39

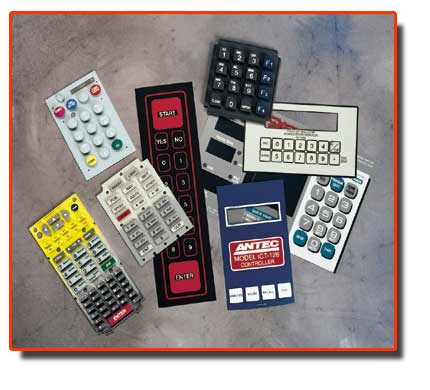

EAI designs standard and custom membrane switches, overlays and panels using state-of-the-art CAD software.
Membrane Panel and Overlay Features/Options

  • Polyester & Polycarbonate in Varieties of Thickness and Finishes (Gloss, Matte, Velvet, or Fine)
  • Selective Textures for Visual Enhancements
  • Graphic Embossing of Switch Areas or Logos
  • Transparent & Deadfront Windows for LCD and LED Displays
  • EMI / RFI / ESD Shielding
  • Non-Tactile and Tactile Switches in Metal Dome, Polydome, or Embossed Graphic Tactile
  • Backlighting - LED’s, Fiber Optics, & Electroluminescent
  • Embedded SMT Components - Chip LED’s and Resistors
  • Terminations - Gas-Tight Male or Female Berg & Amp Clinchers Typically on 0.100" Centers, Solder Tabs and ZIF
  • Metal Mounting Panels
  • Turnkey Assemblies
  • PCB Hybrid Switches - FR4 Based Designs with Optional Component Population
 Color Designations


Black
Pantone 7C 2X
RAL 9005


Off-White
Pantone Cool Gray 1C
RAL 9002


Gray
Pantone Cool Gray 10C
RAL 7001

Pebble Gray
Pantone 413C
RAL 7032
 Color Coating/Painting
Custom chemical resistant color coatings can add functionality and style. Silk-screen printing and tampo printing are also available. Call for minimum quantities.



 Notes
