| DESIGN FEATURES

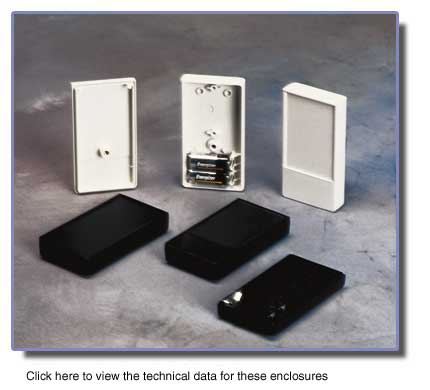

Small pocket-boxes are durable and versatile units with a high sealing capacity. Cases feature a recessed control area for membrane keyboards. Two screw pillars prepared for mounting PCBs in the base and an integrated battery compartment for two 1.5V AAA cells. Black
Infra-red versions permeable to Infra-red signals available.
NEW - Height Expander Strip option increases listed heights by 0.39".
NEW - See Page 9 for two new sizes. |
|
| Version
I |
| Single recessed area for membrane keypad or pressure switch. |
| Version
II |
| Three recessed areas
- same as
Version I, but incorporates two recessed areas on front and one on back of enclosures. |
| Assembly |
Enclosure is snapped in at the front and secured by one M3 screw.
| Accessories |
-Belt / Pocket clip
-Battery spacer
-NEMA 4 / IP65 sealing kits
-Height Expander Strip
-Battery clip set |
| Stock
Colors |
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
See Page 39 for Color Chart
Custom colors available.
ABS (UL 94 HB) and PMMA (plexiglass®), permeable to Infra-red light.
Also available in other materials on request.
Custom insert molding within recessed area can significantly reduce machining costs for many applications. An insert area is also available on the top end of the case. Call for minimum quantities.
Modifications Per Customers Requirements and Technical Information
-For accessory information turn to page 35
-For machining information turn to page 37
-For shielding information turn to page 38
-For screen printing information turn to page 39
-For NEMA / IP protection classifications turn to page 40
-For color information turn to page 39
|
