DESIGN FEATURES

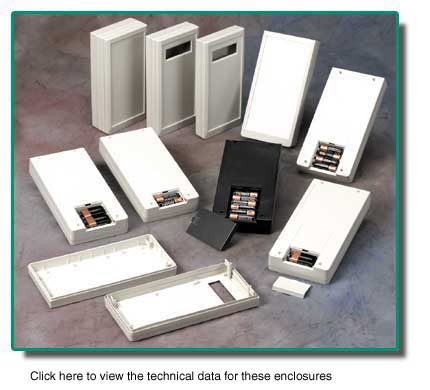

This new version of our large LCD mobile enclosure features a flat bottom. Better suited for applications where the enclosures must lay flat. Available with no battery compartment, 2 x AA, 4 x AA, 6 x AA and 9V battery
configuration. |
|
* See page 9 for more new sizes.
Top with closed LCD operating area recessed by 0.09".
Top with display window cutout for LCD modules of 4 lines by 20 characters. Window size
2.94" x 0.95".
Case is assembled by 4 self-tapping screws. Battery compartment lids are secured by snap mechanism.
Case features an optional integrated NEMA4/IP65 sealing kit.
-NEMA 4 / IP65 sealing kits
-Battery clips for AA Batteries
-Snap-On 9V battery connector
-Tilt bar for easy viewing
-Battery door spacer
-Height Expander Strip
-Wall-mounting kit
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
See Page 39 for Color Chart
Custom colors available
All cases available in a fine textured surface.
| Stock
Material |
ABS (UL 94 HB) Stock
ABS (UL 94 VO) Special order
Special materials available. |
| Insert
Molding |
Custom insert molding within
recessed area can significantly reduce machining costs for many applications. An insert area is also available on the top end of the case. Call for minimum quantities.
|
| Dimensions and Part Numbers for Large LCD Mobile Enclosures Flat Bottom |
| Version |
Outside Dimensions
L x W x H in Inches |
Description
LCD Openings Lines x Characters |
Off-White
Case
Part Number |
Black Case
Part Number |
| Standard Height |
|
|
|
|
| I |
9.92" x 4.76" x 1.28" |
No LCD, No Batt Cmp |
MBLF-107 |
MBLF-109 |
| II |
9.92" x 4.76" x 1.28" |
LCD, 4 x AA Batt |
MBLF-207 |
MBLF-209 |
| III |
9.92" x 4.76" x 1.28" |
No LCD, 1 x 9V Batt or 2 x AA |
MBLF-307 |
MBLF-309 |
| IV |
9.92" x 4.76" x 1.28" |
LCD, 6 x AA Batt |
MBLF-407 |
MBLF-409 |
| V |
9.92" x 4.76" x 1.28" |
4x20 LCD, No Batt Comp |
MBLF-507 |
MBLF-509 |
| VI |
9.92" x 4.76" x 1.28" |
4x20 LCD, 4 x AA Batt |
MBLF-607 |
MBLF-609 |
| VII |
9.92" x 4.76" x 1.28" |
4x20 LCD, 1 x 9V Batt or 2 x AA |
MBLF-707 |
MBLF-709 |
| VIII |
9.92" x 4.76" x 1.28" |
4x20 LCD, 6 x AA Batt |
MBLF-807 |
MBLF-809 |
| Medium Height |
|
|
|
|
| I |
9.92" x 4.76" x 1.68" |
No LCD, No Batt Cmp |
MBLFE-107 |
MBLFE-109 |
| II |
9.92" x 4.76" x 1.68" |
LCD, 4 x AA Batt |
MBLFE-207 |
MBLFE-209 |
| III |
9.92" x 4.76" x 1.68" |
No LCD, 1 x 9V Batt or 2 x AA |
MBLFE-307 |
MBLFE-309 |
| IV |
9.92" x 4.76" x 1.68" |
LCD, 6 x AA Batt |
MBLFE-407 |
MBLFE-409 |
| V |
9.92" x 4.76" x 1.68" |
4x20 LCD, No Batt Comp |
MBLFE-507 |
MBLFE-509 |
| VI |
9.92" x 4.76" x 1.68" |
4x20 LCD, 4 x AA Batt |
MBLFE-607 |
MBLFE-609 |
| VII |
9.92" x 4.76" x 1.68" |
4x20 LCD, 1 x 9V Batt or 2 x AA |
MBLFE-707 |
MBLFE-709 |
| VIII |
9.92" x 4.76" x 1.68" |
4x20 LCD, 6 x AA Batt |
MBLFE-807 |
MBLFE-809 |
| Larger Height |
|
|
|
|
| I |
9.92" x 4.76" x 2.08" |
No LCD, No Batt Cmp |
MBLFE-2107 |
MBLFE-2109 |
| II |
9.92" x 4.76" x 2.08" |
CD, 4 x AA Batt |
MBLFE-2207 |
MBLFE-2209 |
| III |
9.92" x 4.76" x 2.08" |
No LCD, 1 x 9V Batt or 2 x AA |
MBLFE-2307 |
MBLFE-2309 |
| IV |
9.92" x 4.76" x 2.08" |
LCD, 6 x AA Batt |
MBLFE-2407 |
MBLFE-2409 |
| V |
9.92" x 4.76" x 2.08" |
4x20 LCD, No Batt Comp |
MBLFE-2507 |
MBLFE-2509 |
| VI |
9.92" x 4.76" x 2.08" |
4x20 LCD, 4 x AA Batt |
MBLFE-2607 |
MBLFE-2609 |
| VII |
9.92" x 4.76" x 2.08" |
4x20 LCD, 1 x 9V Batt or 2 x AA |
MBLFE-2707 |
MBLFE-2709 |
| VIII |
9.92" x 4.76" x 2.08" |
4x20 LCD, 6 x AA Batt |
MBLFE-2807 |
MBLFE-2809 |
|
