New Products from EAI

 7



Ultra-Pocket Enclosure Hand Held or Tethered


DESIGN FEATURES
Originally designed for remote patient monitoring in hospital, this water resistant NEMA4/IP65 case with sealed electronics area is ideal for many applications. Quick change battery compartment allows the batteries to be changed without breaking the water tight seal. Use for hand held or tethered applications.


 Dimensions and Part Numbers for Ultra-Pocket Enclosures Hand Held or Tethered

Dimensions
L x W x H in Inches

 Description

Off-White
Part Number

Black
Part Number

4.70" x 2.75" x 0.90"

Small Ultra-Pocket 2 x AA Batteries

 UPE-107

 UPE-109
5.97" x 3.26" x 1.29" Medium Ultra-Pocket 2 x AA (Future Design)  UPE-207   UPE-209
7.66" x 3.93" x 1.76" Large Ultra-Pocket 2 x AA (Future Design)   UPE-307 UPE-309
Note: IR Transparent PMMA Material Available

 Details
-Permanent sealing system no O-rings

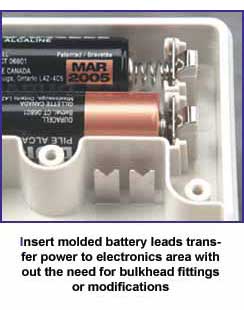

-2 x AA battery compartment
-Spring actuated battery door release
-Sealed electronics battery compartment
-Recessed area on top and bottom
-Tether/Necklace ready
 Stock Colors
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
Custom colors available
All cases in a fine textured surface.
 Stock Materials
Polycarbonate (UL 94VO)
Special materials available.
 Insert Molding
Custom insert molding within recessed area can significantly reduce machining costs for many applications. An insert area is also available on the top end of the case. Call for minimum quantities.

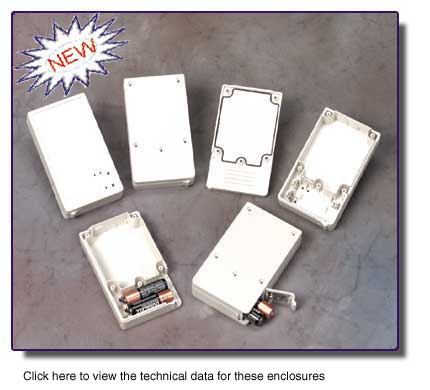

New! High Profile - Mobile Box Extreme



Stock Materials
-ABS UL94 VO
-ABS UL94 HB
-Polycarbonate
Special materials available
Added Versatility with 2 Side Plates and 1 End Plate - 2.25" Thick!

DESIGN FEATURES
Originally designed for fiber optic testing this water resistant NEMA4/IP65 case is ideal for many applications. The enclosure features two side plates and a large end plate for added flexibility. Available with 2 x AA, 4 x AA, 1 x 9V, 2 x 9V, and NICAD battery compartments. Optional lithium ion battery with integrated protection circuit provides 14.8 V, 1800MA hours.


   ;

Dimensions and Part Numbers for High Profile - Mobile Box Extreme

Version

Dimensions
L x W x H in Inches

Description
LCD Openings Lines x Characters

  Off-White
Part Number

 Black
Part Number

I

7.68" x 3.95" x 2.25"

Enclosure with no LCD window

HPME-109

 HPME-107

II

 7.68" x 3.95" x 2.25" Enclosure with 2x16 LCD window HPME-209 HPME-207

III

 7.68" x 3.95" x 2.25" Enclosure with compact 2x16 LCD window  HPME-309 HPME-307

IV

 7.68" x 3.95" x 2.25" Enclosure with 4x16 LCD window HPME-409 HPME-407

V

 7.68" x 3.95" x 2.25" Enclosure with 2x20 LCD window HPME-509 HPME-507
