Mobile Box Extreme Designed for Heavy Duty Application


DESIGN FEATURES
Mobile extreme enclosures are designed for heavy duty portable applications. The cases have a large recessed control area for membrane keyboards. Three mountable battery compartments are available, designed for 4 x AA, 2 x AA, 1 x 9V, 2 x 9V or no batteries. Optional rubber boot provides extra protection.


Dimensions and Part Numbers for Mobile Box Extreme Enclosures

Version

Outside Dimensions
L x W x H
in Inches

Display Cutout
in Inches

  Off-White Case
Part Number

 Black Case
Part Number

I

6.49" x 3.93" x 1.73"

none

ME-107

ME-109

II

6.49" x 3.93" x 1.73"

2.36" x 0.59"

ME-207

ME-209

III

6.49" x 3.93" x 1.73"

2.44 x 0.51

ME-307

ME-309

IV

6.49" x 3.93" x 1.73"

2.37 x 0.95

ME-407

ME-409

V

6.49" x 3.93" x 1.73"

2.87 x 1.04

ME-507

ME-509


 ACCESSORIES

Article

 Color

Application / Description

Part Number

Rubber Sealing Kit

Black

For sealing up to NEMA 4 / IP65

ASK-74

Battery Compartment

Off-White/Black

For 1 x 9V Battery, ABS

ACO-03

Set of Battery Clips Nickel Plated For 1 x 9V Battery ABC-04
Battery Compartment

Off-White/Black

For 2 x 9V Batteries, ABS

ACO-02

Set of Battery Clips

Nickel Plated

For 2 x 9V Batteries ABC-02

Battery Compartment

Off-White/Black

For 4 x 1.5V AA Batteries, ABS

ACO-04

Set of Battery Clips

Nickel Plated

For 4 x 1.5V AA Batteries

ABC-01

Snap-on Connector

Blue or Black

For 1 x 9V Battery

ABC-06

Height Expander Strip

Custom Colors Available

 Rubber Boot and Tilt Bar

ARB-011




 Version I
Top with closed operating area recessed by 0.075".
 Version II
Cutout for 2 x 16 characters LCD module. Window size 2.36" x 0.59"
 Version III
Cutout for 2 x 16 characters LCD module. Window size 2.44" x 0.51".
Version IV
Cutout for 4 x 16 characters LCD module. Window size 2.37" x 0.95".
 Version V
Cutout for 4 x 20 characters LCD module. Window size 2.87" x 1.04".
 Insert Molding
 Custom insert molding within recessed area can significantly reduce machining costs for many applications. An insert area is also available on the top end of the case. Call for minimum quantities.
 Optional Orange Rubber Boot

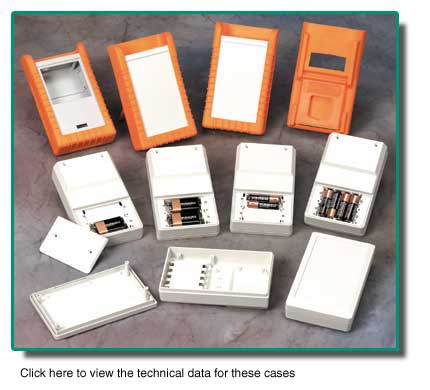

The optional rubber boot (shown installed on the cases below), provides extra protection for your finished unit. It also has an integrated Tilt/Carry/Hang Handle Feature molded in.
