DESIGN FEATURES

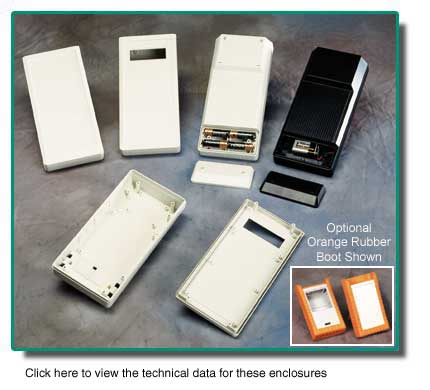

Hand-held box with a NEMA 4 / IP65 sealing rating holds a wide range of applications. Features a large control area for membrane keyboards and controls as well as an integrated and sealed battery compartment that is accessible from the outside for 4 x 1.5V AA cells.
NEW - Height Expander Strip option increases listed heights by 0.39".
NEW - See Page 9 for two new sizes.
|
| Dimensions and Part Numbers for
Large LCD Mobile Enclosures |
Version |
Outside
Dimensions
L x W x H in Inches |
Display
Cutout Dimensions
in Inches |
Off-White Case
Part Number |
Black Case
Part Number |
I |
9.92" x 4.76" x 1.97" |
No LCD Opening |
MBL-107 |
MBL-109 |
| II |
9.92" x 4.76" x 1.97" |
2.93" x 0.95" |
MBL-207 |
MBL-209 |
| I |
9.92" x 4.76" x 2.36" |
No LCD Opening |
MBLE-107 |
MBLE-109 |
| II |
9.92" x 4.76" x 2.36" |
2.93" x 0.95" |
MBLE-207 |
MBLE-209 |
| I |
9.92" x 4.76" x 2.75" |
No LCD Opening |
MBLE-2107 |
MBLE-2109 |
II |
9.92" x 4.76" x 2.75" |
2.93" x 0.95" |
MBLE-2207 |
MBLE-2209 |
| ACCESSORIES |
|
Article |
Color |
Application/Description |
Part Number |
|
Rubber Sealing Kit |
Gray |
2 O-rings for sealing up to NEMA 4/IP65 |
ASK-75 |
|
Snap-on Connector |
Blue or Black |
1 x 9V Battery |
ABC-06 |
|
Set of Battery Clips |
Nickel Plated |
4 x 1.5V AA cells |
ABC-02 |
|
Tilt Bar |
Off-White |
60 degree tilt bar for easy desktop viewing |
ATB-01 |
|
Tilt Bar |
Black |
60 degree tilt bar for easy desktop viewing |
ATB-02 |
|
No Slip Skid Pad |
Black |
Rubber pad for reducing surface movement |
ARF-05 |
|
Battery Spacer |
Gray |
PE foam with one sided coating keeps battery snug |
ABS-01 |
|
Height Expander Strip |
Any Color |
Increases case height by 0.39" |
HES-75 |
|
Top with closed LCD operating area recessed by 0.087" (2.2mm).
Top with display window cut-out for LCD modules of 20 characters by 4 lines. Window size 2.93" x 0.95", (74.6mm x 24.2mm).
Case is assembled by 4 self-tapping screws. Battery compartment lids are secured by 2 M3 screws. Display windows must be properly sealed to provide protection to meet NEMA 4 / IP65 specifications.
-NEMA 4 / IP65 sealing kits
-Battery clips for 9V and 4 x 1.5V AA Cells
-Snap-on Connector 9V battery
-Tilt bar for easy viewing
-Battery door spacer
-Height Expander Strip
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
Gray: Pantone Cool Gray 10C Special Order
See Page 39 for Color Chart
Custom colors available
All cases in a fine textured surface.
ABS (UL 94 HB)
ABS (UL 94 VO)
Special materials available.
| Insert
Molding |
| Custom insert molding within recessed area can significantly reduce machining costs for many applications. An insert area is also available on the top end of the case. Call for minimum
quantities |
| Optional Orange Rubber Boot |
The optional rubber boot provides extra protection for your finished unit. It also has an integrated
Tilt/Carry/Hang Handle Feature molded in.
|
