DESIGN FEATURES
The 90-74 series line of enclosures are designed for portable applications. The cases have a large recessed control area for membrane keyboards. Three mountable battery compartments are available, designed for 4 x 1.5V AA cells, one 9V or 2 x 9V cells. The battery
compartment lid is built into the base of the enclosure.
NEW - Height Expander Strip option increases listed heights by 0.39".
NEW - See Page 9 for three new sizes.
|
| Dimensions and Part Numbers for
Medium LCD Mobile Enclosures |
|
Version |
Outside Dimensions
L x W x H in Inches |
Display Cutout
Dimensions
in Inches |
Off-White Case
Part Number |
Black Case
Part Number |
|
I |
7.68".x.3.98" x 1.73" |
none |
MBM-107 |
MBM-109 |
|
II |
7.68".x.3.98" x 1.73" |
2.36" x 0.59" |
MBM-207 |
MBM-209 |
|
III |
7.68".x.3.98" x 1.73" |
2.44” x 0.51” |
MBM-307 |
MBM-309 |
|
IV |
7.68".x.3.98" x 1.73" |
2.37” x 0.95” |
MBM-407 |
MBM-409 |
|
V |
7.68".x.3.98" x 1.73" |
2.87” x 1.04” |
MBM-507 |
MBM-509 |
| ACCESSORIES |
|
Article |
Color |
Application / Description |
Part Number |
|
Rubber Sealing Kit |
Gray |
2 O-rings for sealing up to NEMA 4/IP65 |
ASK-74 |
|
Battery Compartment |
Off-White/Black |
For 2 x 9V Batteries, ABS |
ACO-02 |
|
Battery Compartment |
Off-White/Black |
For 1 x 9V Battery, ABS |
ACO-03 |
|
Battery Compartment |
Off-White/Black |
For 4 x 1.5V AA Batteries, ABS |
ACO-04 |
|
Set of Battery Clips |
Nickel Plated |
For 2 x 9V Batteries |
ABC-02 |
|
Set of Battery Clips |
Nickel Plated |
For 1 x 9V Battery |
ABC-04 |
|
Set of Battery Clips |
Nickel Plated |
For 4 x 1.5V AA Batteries |
ABC-01 |
|
Snap-on Connector |
Blue or Black |
For 1 x 9V Battery |
ABC-06 |
|
Height Expander Strip |
Any Color |
Increases case height by 0.39" |
HES-74 |
|
Top with closed operating area recessed by 0.07".
Cutout for 2 x 16 LCD module.
Window size 2.36" x 0.59".
Cutout for 2 x 16 compact LCD module.
Window size 2.44" x 0.51"
Cutout for 4 x 16 LCD module.
Window size 2.37" x 0.95".
Cutout for 4 x 20 LCD module.
Window size 2.87" x 1.04".
Case is assembled by 4 self-tapping
screws. Battery compartment lids are secured by 2 M3 screws. Display windows must be properly sealed to provide protection to meet NEMA 4 / IP65 specifications.
-NEMA 4 / IP65 sealing kits
-Battery clip set
-Snap-on Connector for 9V battery
-Tilt foot bar
-Battery door spacer
-Height Expander Strip
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
Gray: Pantone Cool Gray 10C
Special Order
See Page 39 for Color Chart
Custom colors available
All cases available in a fine textured surface.
ABS (UL 94 HB)
ABS (UL 94 VO)
Special materials available.
| Insert
Molding |
| Custom insert molding within recessed area can significantly reduce machining costs for many applications. An insert area is also available on the top end of the case. Call for minimum quantities. |

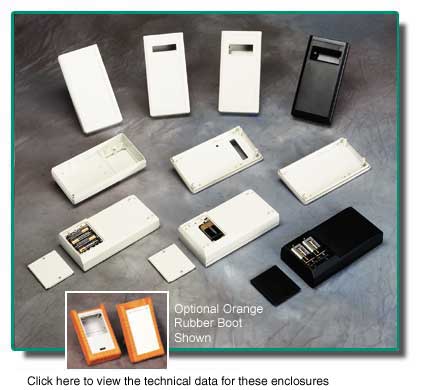

| Optional Orange Rubber Boot |
| The optional rubber boot provides extra protection
for your finished unit. It also has an integrated Tilt/Carry/Hang Handle
Feature molded in.
|
|
