DESIGN FEATURES
Small hand-held case of attractive design. Integrated battery compartment for two 4 x 1.5V AA cells or 2 x 9V cells. Also available without battery compartment. Robust and sealed up to NEMA 4/IP65. Recessed control area to protect the membrane keypads.
NEW - Height Expander Strip option increases listed heights by 0.39".
NEW - See Page 9 for two new sizes.
|
| Dimensions and Part Numbers for Small LCD Mobile Enclosures |
Version |
Outside Dimensions
L x W x H in Inches |
Display Cutout
Dimensions
in Inches |
Part Number With
Battery Compartment |
Part Number Without
Battery Compartment |
| |
|
|
Off-White Cases |
Black Cases |
Off-White Cases |
Black Cases |
I |
5.98" x 3.27" x 1.32" |
none |
MBS-107 |
MBS-109 |
MBS-117 |
MBS-119 |
| II |
5.98" x 3.27" x 1.32" |
1.79" x 0.70" |
MBS-207 |
MBS-209 |
MBS-217 |
MBS-219 |
III |
5.98" x 3.27" x 1.32" |
1.76" x 0.36" |
MBS-307 |
MBS-309 |
MBS-317 |
MBS-319 |
| IV |
5.98" x 3.27" x 1.32" |
1.76" x 0.69" |
MBS-407 |
MBS-409 |
MBS-417 |
MBS-419 |
| To order the MBS series case without sure-grip ribs on the bottom of the case, change the second number of the part number to a 3. Example: MBS-209 becomes a MBS-239. This allows for a label or sticker on back of case. |
| ACCESSORIES |
|
Article |
Color |
Application/Description |
Part Number |
|
Rubber Sealing Kit |
Gray |
2 O-rings for sealing up to NEMA 4/IP65 |
ASK-73 |
|
Set of Battery Clips |
Nickel Plated |
For 2 x 1.5V AA
Batteries |
ABC-03 |
|
Snap-on Connector |
Blue or Black |
For 1 x 9V Battery |
ABC-06 |
|
Height Expander Strip |
Any Color |
Increases case height by 0.39" |
HES-73 |
|
Top with closed operating area, recessed by 0.07".
Top with display cutout for LCD modules with 2 lines x 16
characters. Window size 1.79" x 0.70".
| Version
III |
| Top with display cutout for compact
LCD modules with 2 lines x 20 characters. Window size 1.76" x 0.36". |
| Version
IV |
| Top with display cutout for LCD
modules with 4 lines x 16 characters. Window size 1.76" x 0.69". |
| Case
Assembly |
Case is assembled by 4 self-tapping screws. Battery
compartment lids are secured by 2 M3 screws. Display windows must be
properly sealed to provide protection to meet NEMA 4 / IP65 specifications.
-NEMA 5 / IP654 sealing kits
-Battery clip set
-Snap-on Connector for 9V battery
-Tilt foot bar
-Battery door spacer
-Height Expander Strip
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
Gray: Pantone Cool Gray 10C Special Order
See Page 39 for Color Chart
Custom colors available
All cases in a fine textured surface.
ABS (UL 94 HB)
ABS (UL 94 VO)
Special materials available.

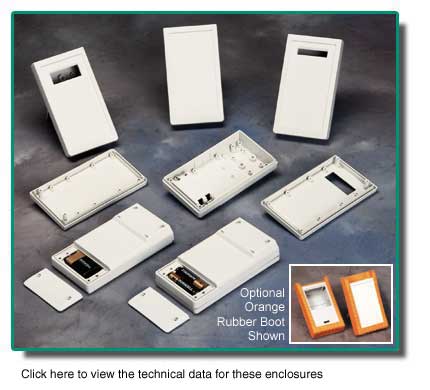

| Optional Orange Rubber Boot |
| The optional rubber boot provides extra protection for your finished unit. It also has an integrated
Tilt/Carry/Hang Handle Feature molded in. |
| Insert
Molding |
Custom insert molding within recessed area can significantly reduce machining costs for many applications. An insert area is also available on the top end of the case. Call for minimum quantities.
|
