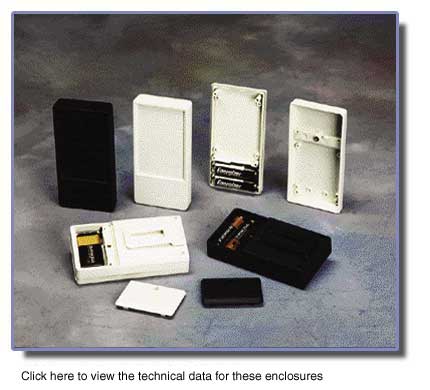

Large Pocket Enclosures

 13


DESIGN FEATURES
The large pocket-boxes feature a rugged design with a high sealing capacity. Contains a recessed area for membrane keyboards. Screw bosses for mounting PCBs in the top and base. Battery compartment for 2 x 1.5V AA batteries or 1 x 9V battery. Battery compartment is segmented by an internal rib. Black Infra-red versions permeable to Infra-red signals available.
NEW - Height Expander Strip option increases listed heights by 0.39".
NEW -See Page 9 for two new sizes.


 Version I
Battery compartment secures with a single screw.
 Version II
With snap-lock battery compartment cover.
 Assembly
Case assembled by means of 4 self-tapping screws. The battery compartment lid is secured by one machine screw or by snap- lock clip.
 Accessories
-Belt / Pocket clip
-Battery spacer
-NEMA 4/IP654 sealing kits
-Height Expander Strip
-Battery clip
 Stock Colors
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
See Page 39 for Color Chart
Custom colors available
All cases available in a fine textured surface.
 Stock Material
ABS (UL 94 HB) and PMMA (plexiglass®), permeable to Infra-red light. Also available in other materials on request.
 Insert Molding
Custom insert molding within recessed area can significantly reduce machining costs for many applications. An insert area is also available on the top end of the case. Call for minimum quantities.
 Dimensions and Part Numbers for Large Pocket Enclosures
VERSION

 OUTSIDE DIMENSIONS
 L x W x H in Inches

 COLOR MATERIAL CASE
PART NUMBER
I

4.72" x 2.56" x 0.87"

 Off-White ABS (UL 94 HB)

 PBL-107
I 4.72" x 2.56" x 0.87" Black ABS (UL 94 HB) PBL-109
I 4.72" x 2.56" x 0.87" Black IR Transparent PMMA / ABS PBL-209
II 4.72" x 2.56" x 0.87" Off-White ABS (UL 94 HB) PBL-127
II

4.72" x 2.56" x 0.87"

 Black ABS (UL 94 HB)

PBL-129
II

4.72" x 2.56" x 0.87"

 Black IR Transparent PMMA / ABS

PBL-229


 ACCESSORIES
ARTICLE

 COLOR

 APPLICATION/DESCRIPTION

 PART NUMBER

Rubber Sealing Kit

 Gray  2 O-rings for sealing up to NEMA 4/IP65  ASK-72
Set of Battery Clips Nickel Plated For 2 x 1.5V AA Batteries ABC-03
Snap-On Connector Blue or Black For 1 x 9V Battery  ABC-06
Battery Spacer  Gray PE foam with one-sided coating keeps battery snug ABS-01
Height Expander Strip Any Color Increases case height by 0.39" HES-72



See Page 35 For Belt Clip Accessory
