LCD Hand Held Enclosures

14


DESIGN FEATURES
  • Display window with openings for LCD displays.
  • 3 different attractive styles available.
  • 2 standard colors, black and off-white.
  • Side cutout for rocker switch available on small size.
  • Recessed top for membrane keypads standard on large and small size.
  • Flat areas for machining cutouts and applying membrane keypads.
  • Screw bosses for mounting PCBs inside the top and bottom of the case.
  • Integrated battery compartments for various battery configurations.
NOTE: Available with or without battery compartment.










 Three Sizes
  L W H
Small 5.70"  3.14"   1.43"/1.16"
Med. 5.70"  3.14"  1.51"/1.24"
Large 7.08"  3.94"  1.73"/1.38"

 Applications
Devices for measuring digital or analog readout. Great for electrical and non-electrical measuring.
 Assembly
Enclosures assembled by 4 self-tapping screws. Snap-in battery door.
 Accessories
-Belt clip
-Set of battery clips
-Battery spacer
-Tilt bar
-Rubber feet
 Stock Colors
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
See Page 39 for Color Chart
Custom colors available
 All cases available in a fine textured finish.
 Stock Material
ABS (UL 94 HB)
Custom materials available.
 LCD Window Sizes
Active window area sizes:
1.97" x 0.79"
2.49" x 0.50"
2.56" x 0.91"
Call for other sizes!
 Insert Molding
Custom insert molding within recessed area can significantly reduce machining costs for many applications.  Call for minimum quantities.
 Optional Orange Rubber Boot

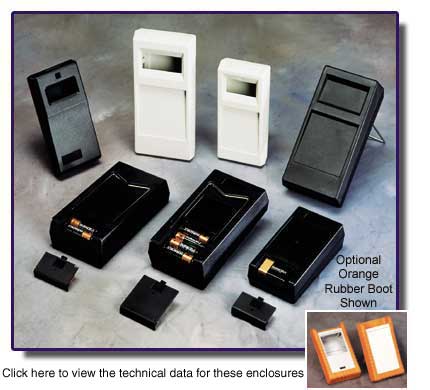

The optional rubber boot (shown installed on the cases below), provides extra protection for your finished unit. It also has an integrated Tilt/Carry/Hang Handle Feature molded in.
