Small LCD Hand Held Enclosures

15


DESIGN FEATURES
Handy pocket size case for measuring instruments. Includes a recessed area for membrane keypads and logo area. The battery compartment is accessible from the outside for a 9V battery. Version available with cutout for rocker switch on side of case.

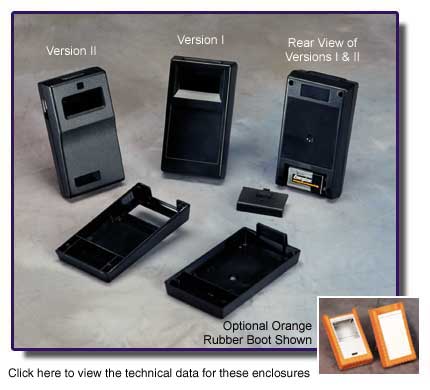

 Version I
With recessed area.
 Version II
Without recessed area.
 Assembly
Enclosure assembled with four self-tapping screws; the battery compartment is secured with snapping clip.
 Stock Colors
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
See Page 39 for Color Chart
Custom colors available
All cases in a fine textured surface.
 Stock Material
ABS (UL 94 HB)
Also available in other materials on request.
 LCD Window Size
1.97" x 0.79"
 Insert Molding
Custom insert molding within recessed area can significantly reduce machining costs for many applications. An insert area is also available on the top end of the case. Call for minimum quantities.
 Optional Orange Rubber Boot
The optional rubber boot , provides extra protection for your finished unit. It also has an integrated Tilt/Carry/Hang Handle Feature molded in.

Modifications Per Customers Requirements and Technical Information
-For accessory information turn to page 35
-For machining information turn to page 37
-For shielding information turn to page 38
-For screen printing information turn to page 39
-For NEMA / IP protection classifications turn to page 40
-For color information turn to page 39

 Dimensions and Part Numbers for Small LCD Hand Held Enclosures

 OUTSIDE DIMENSIONS
L x W x H
in Inches

COLOR VERSION / APPLICATION CASE PART NUMBER

5.70" x 3.14" x 1.51"/1.24"

Black I / has recessed area

 MLCD-019

5.70" x 3.14" x 1.51"/1.24" Off-White I / has recessed area MLCD-017
5.70" x 3.14" x 1.43"/1.16" Black  II / with switch cut-out SLCD-009
5.70" x 3.14" x 1.43"/1.16" Off-White  II / with switch cut-out SLCD-007

5.70" x 3.14" x 1.43"/1.16"

Black I / no switch cut-out

SLCD-019

5.70" x 3.14" x 1.43"/1.16"

Off-White I / no switch cut-out

SLCD-017


See Page 35 For Additional Accessories.

 ACCESSORIES

ARTICLE

COLOR

 VERSION / APPLICATION

PART NUMBER

Snap-on Connector

 Blue/Black For 1 x 9V Battery ABC-06
Battery spacer  Gray PE foam with one-sided coating keeps battery snug ABS-01
Rubber Feet Black 0.28"w x 0.12"h ARF-01
Rubber Eyelet Foot Black 0.37"w x 0.17"h  ARF-07
Large Belt Clip Silver  Steel/Chrome ACL-01
Small Belt Clip Silver  Steel/Chrome ACL-02
