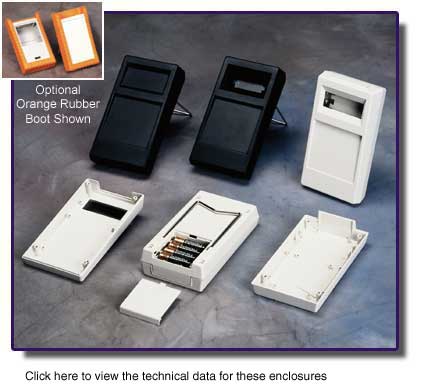

Large LCD Hand Held Enclosures - 9 versions	16

DESIGN FEATURES Unique hand held case with recessed area for cutouts and keypads. Window with active area up to 2.56" x 0.91". Versions with battery compartments for 1 or 2 x 9V batteries or 2 or 4 x 1.5V AA cells, accessible from outside.

Assembly Enclosure assembled by 4 self-tapping screws. Snap-in battery compartment lid. Snap-in tilt bar optional.  Stock Colors Off-White: Pantone Cool Gray 1C Black: Pantone Black 7C 2X See Page 39 for Color Chart Custom colors available upon request All cases in a fine textured finish.  Stock Material ABS (UL 94 HB) ABS (UL 94 VO) Special materials available.  Version I Without battery compartment.  Version II With battery compartment for 2 x 9V or 4 x 1.5V AA.  Version III With battery compartment for 1 x 9V battery or 2 x 1.5V AA  Large LCD Window Active area 2.56" x 0.91"  Small LCD Window Active area 2.49" x 0.50"  Insert Molding Custom insert molding within recessed area can significantly reduce machining costs for many applications. Call for minimum quantities.  Optional Orange Rubber Boot The optional rubber boot, provides extra protection for your finished unit. It also has an integrated Tilt/Carry/Hang Handle Feature molded in.

Dimensions and Part Numbers for Large LCD Hand Held Enclosures VERSION OUTSIDE DIMENSIONS L x W x H in Inches COLOR DESCRIPTION CASE PART NUMBER I 7.08" x 3.94" x 1.73"/1.38"  Black LCD Case Large Window LLCD-111 I 7.08" x 3.94" x 1.73"/1.38"  Black LCD Case Small Window LLCD-121 I 7.08" x 3.94" x 1.73"/1.38"  Black LCD Case No Window  LLCD-131 I 7.08" x 3.94" x 1.73"/1.38"  Off-White LCD Case Large Window LLCD-117 I 7.08" x 3.94" x 1.73"/1.38"  Off-White LCD Case Small Window LLCD-127 I 7.08" x 3.94" x 1.73"/1.38"  Off-White LCD Case No Window  LLCD-137 II 7.08" x 3.94" x 1.73"/1.38"  Black LCD Case Large Window LLCD-011 II 7.08" x 3.94" x 1.73"/1.38"  Black LCD Case Small Window LLCD-021 II 7.08" x 3.94" x 1.73"/1.38"  Black LCD Case No Window  LLCD-031 II 7.08" x 3.94" x 1.73"/1.38"  Off-White LCD Case Large Window LLCD-017 II 7.08" x 3.94" x 1.73"/1.38"  Off-White LCD Case Small Window LLCD-027 II 7.08" x 3.94" x 1.73"/1.38"  Off-White LCD Case No Window  LLCD-037 III 7.08" x 3.94" x 1.73"/1.38"  Black LCD Case Large Window LLCD-911 III 7.08" x 3.94" x 1.73"/1.38"  Black LCD Case Small Window LLCD-921 III 7.08" x 3.94" x 1.73"/1.38"  Black LCD Case No Window  LLCD-931 III 7.08" x 3.94" x 1.73"/1.38"  Off-White LCD Case Large Window LLCD-917 III 7.08" x 3.94" x 1.73"/1.38"  Off-White LCD Case Small Window LLCD-927 III 7.08" x 3.94" x 1.73"/1.38"  Off-White LCD Case No Window  LLCD-937 See Page 35 For Additional Accessories  ACCESSORIES ARTICLE  COLOR  VERSION / APPLICATION PART NUMBER Rubber Boot  Black 0.39" x 10.12", Self-Adhesive ARF-02 Rubber Eyelet Foot Black 0.37"w x 0.17"h ARF-07 Set of Battery Clips Nickel Plated For 4 x 1.5V AA Batteries  ABC-01 Snap-on Connector Blue/Black For 1 x 9V Battery ABC-06 Tilt Foot Bar  Chrome Plated  Steel, 37° Tilt  ATB-01
