Ultra Enclosures Open Front, Closed Rear

 17


DESIGN FEATURES
Two-part case with open front panel. An optional anodized aluminum front panel is also available. Enclosure is closed with 4 self-tapping screws.




 Version I
Without a battery compartment.
 Version II
With a battery compartment for 1 x 9V battery.
 Version III
With a battery compartment for 4 x 1.5V AA or 2 x 9V batteries.
 Version IV
With a battery compartment for 2 x 1.5V AA batteries or 1 x 9V battery.
 Stock Colors
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
See Page 39 for Color Chart
Custom colors available
All cases in a fine textured surface.

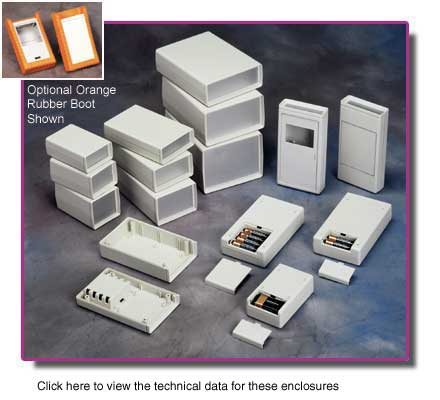

 Optional Orange Rubber Boot
The optional rubber boot provides extra protection for your finished unit. It also has an integrated Tilt/Carry/Hang Handle Feature molded in.

Some versions are available with recessed top areas.
CALL FOR DETAILS !

Modifications Per Customers Requirements and Technical Information
-For accessory information turn to page 35
-For machining information turn to page 37
-For shielding information turn to page 38
-For screen printing information turn to page 39
-For material properties turn to page 41
-For NEMA / IP protection classifications turn to page 40
-For color information turn to page 39
Dimensions and Part Numbers for Ultra Enclosures Open Front, Closed Rear
Version

Case Dimensions
 L x W x  H in Inches

 Case
Part Number

 Anodized Aluminum
Plate Part Number

Anodized Aluminum
 Plate Dimensions
L x W x Thickness

 Optional Recessed Top
3.39" x 3.21" R=0.125"		 Optional Recessed Top
5.38" x 3.14" R=0.025"
I 4.49" x 2.83" x 1.30" UOCS-113

 UPS-111

 2.33" x 0.98" x 0.04"

 ----

 ----
I 4.49" x 2.83" x 1.77" UOCS-123  UPS-121 2.33" x 1.45" x 0.04"

 ----

 ----
I 4.49" x 2.83" x 2.24"  UOCS-223 UPS-221 2.33" x 1.93" x 0.04"

 ----

 ----
II 4.49" x 2.83" x 1.30" UOCS-114 UPS-111  2.33" x 0.98" x 0.04"

 ----

 ----
II 4.49" x 2.83" x 1.77"  UOCS-124

UPS-121

 2.33" x 1.45" x 0.04"

 ----

 ----
I 6.22" x 3.74" x 1.30" UOCM-113 UPM-111 3.20" x 0.92" x 0.04"

 Yes

 Yes
I 6.22" x 3.74" x 1.77" UOCM-123 UPM-121  3.20" x 1.40" x 0.04"

Yes

 Yes
I 6.22" x 3.74" x 2.24"  UOCM-223 UPM-221 3.20" x 1.87" x 0.04" ---- ----
IV 6.22" x 3.74" x 1.30" UOCM-116 UPM-111 3.20" x 0.92" x 0.04" ---- ----
IV 6.22" x 3.74" x 1.77" UOCM-126 UPM-121 3.20" x 1.40" x 0.04" Yes Yes
III 6.22" x 3.74" x 1.30" UOCM-118 UPM-111 3.20" x 1.87" x 0.04"  Yes Yes
III 6.22" x 3.74" x 1.77" UOCM-128 UPM-121 3.20" x 1.40" x 0.04"

 Yes

 Yes
I 7.48" x 5.43" x 1.77" UOCL-113 UPL-111 4.88" x 1.32" x 0.06" ---- ----
I 7.48" x 5.43" x 2.67" UOCL-123 UPL-121 4.88" x 2.22" x 0.06" ---- ----
I 7.48" x 5.43" x 3.58" UOCL-223 UPL-221 4.88" x 3.13" x 0.06" ---- ----
III 7.48" x 5.43" x 1.77" UOCL-118 UPL-111 4.88" x 1.32" x 0.06" ---- ----
III 7.48" x 5.43" x 2.67" UOCL-128 UPL-121   4.88" x 2.22" x 0.06"

 ----

 ----


See Page 35 For Accessory Information.
