DESIGN FEATURES

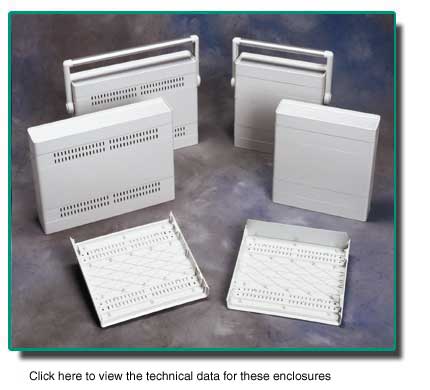

Euro cases are designed for many desktop applications. They feature easy assembly with the use of clips and snap locks; no screws are required, and many parts are modular to achieve custom configurations.



 Version I
Non-vented top and bottom strips.
 Version II
Vented top and bottom strips.
 Stock Colors
Off-White: Pantone Cool Gray 1C
See Page 39 for Color Chart
Custom colors available
 Stock Material
High Impact ABS (UL 94 VO)
Fire grade material

Modifications Per Customers Requirements and Technical Information
-For accessory information turn to page 35
-For machining information turn to page 37
-For shielding information turn to page 38
-For screen printing information turn to page 39
-For material properties turn to page 41
-For NEMA/IP protection classifications turn to page 40
-For color information turn to page 39
 Note
• Larger heights available on all versions by adding additional side panels.
• Call for specific details.
• Any configuration of vented/nonvented strips available
Dimensions and Part Numbers for Euro Tech Enclosures

VERSION

 OUTSIDE DIMENSIONS
L x W x H in Inches		 INTERNAL HEIGHT

DESCRIPTION

 PART NUMBER

II

 9.84" x 10.23" x 2.13" 1.58" Vented top and bottom ES-10-VOO
I  9.84" x 10.23" x 2.13" 1.58" Non-vented top and bottom ES-10-NVO
II 9.84" x 10.23" x 3.00"  2.46" Vented top and bottom ES-15-VOO
I 9.84" x 10.23" x 3.00"  2.46" Non-vented top and bottom ES-15-NVO
II 9.84" x 10.23" x 3.88"  3.33" Vented top and bottom ES-20-VOO
I 9.84" x 10.23" x 3.88"  3.33" Non-vented top and bottom ES-20-NVO
II 9.84" x 10.23" x 5.63"  5.08" Vented top and bottom ES-30-VOO
I 9.84" x 10.23" x 5.63"  5.08" Non-vented top and bottom ES-30-NVO
II 9.84" x 14.44" x 2.13"  1.58" Vented top and bottom EM-10-VOO
I 9.84" x 14.44" x 2.13"  1.58" Non-vented top and bottom EM-10-NVO
II 9.84" x 14.44" x 3.00"  2.46" Vented top and bottom EM-15-VOO
I 9.84" x 14.44" x 3.00"  2.46" Non-vented top and bottom EM-15-NVO
II 9.84" x 14.44" x 3.88"  3.33" Vented top and bottom EM-20-VOO
I 9.84" x 14.44" x 3.88"  3.33" Non-vented top and bottom EM-20-NVO
II 9.84" x 14.44" x 5.63"  5.08" Vented top and bottom EM-30-VOO
I 9.84" x 14.44" x 5.63"  5.08" Non-vented top and bottom EM-30-NVO
-- 10.25" -- 10.25" carrying / tilt handle HAN-217
-- 14.50" -- 14.50" carrying / tilt handle HAN-317
