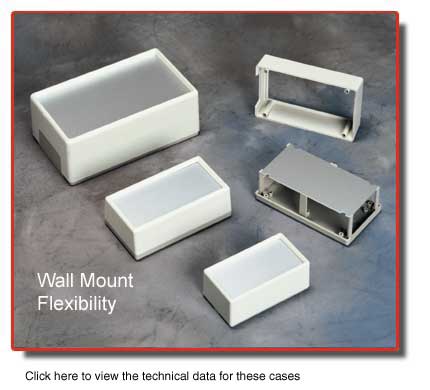

Flat-Tech Cases wall mount or desk top

23


DESIGN FEATURES
Flat workable aluminum top that provides a good surface for large toggle switches and large activation buttons. The top plate is self-supported. Enclosure can be wall-mounted or hand held for tethered applications. The top can be custom CNC die punched at our factory to meet your specific requirements.


 Dimensions and Part Numbers for Flat-Tech Cases wall mount or desktop
OUTSIDE DIMENSIONS
L x W x H
in Inches
CASE & ALUMINUM
PLATE DESCRIPTION
PART NUMBER
4.72" x 2.56" x 1.57" Case - Small FTS-165
5.91" x 3.35" x 1.77" Case - Medium  FTM-165
8.26" x 4.92" x 2.75" Case - Large  FTL-165
4.45" x 2.28" x 0.04" Top Plate for FTS-165 FTP-201
5.59" x 2.81" x 0.06" Top Plate for FTM-165 FTP-301
7.91" x 4.57" x 0.06"  Top Plate for FTL-165  FTP-401








 Three Sizes
  L W H
 Small 4.72" 2.56"  1.57"
 Medium 5.91" 3.35"  1.77"
Large 8.26" 4.92" 2.75"

 Application
Durable switch box for control, process and display applications.
 Stock Colors
Off-White: Pantone Cool Gray 1C
Gray: Pantone 413C
See Page 39 for Color Chart
 Stock Material
Case: High-impact ABS (UL 94 HB). Front panel: Matt anodized aluminum.

Modifications Per Customers Requirements and Technical Information
- For CNC machining turn to page 37
- For EMI/RFI Shielding turn to page 38
- For screen printing and tampo printing turn to page 39
- NEMA / IP protection classification turn to page 40
- For color information turn to page 39
