Widetec Enclosures - 9 sizes

24


DESIGN FEATURES
VERSATILE, ROBUST, FUNCTIONAL DESIGN

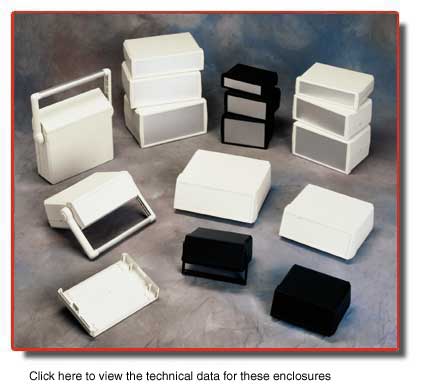

Desktop enclosure with optional slope panel and carrying handle. Compatible with aluminum panels on front and back. Screw less assembly for quick internal access using a quick latch mechanism providing added flexibility for medical applications. PCB mounting bosses are located on the top and bottom. Insert areas for semi-custom tooling available on some models.



New Versions & Accessories
  • Top with card reader cutout
  • Top with recessed/custom insert area
  • Bottom with recessed/custom insert area
  • Slope panel with recessed/custom area
  • Heavy duty carrying handle/tilt bar
  • Light duty carrying handle/tilt bar
Call For Details On New   Versions


 Version Dimensions
  L W H
 Size 1  6.10" 4.13"  1.57"
 Size 2 6.10" 4.13"  2.56"
 Size 3 6.10" 4.13"  3.54"
 Size 4 8.07" 5.51"  1.97"
 Size 5 8.07" 5.51"  2.95"
 Size 6 8.07" 5.51"  3.94"
 Size 7 9.25"  6.50"  2.36"
 Size 8 9.25" 6.50" 3.35"
 Size 9 9.25"  6.50" 4.33"

 Application
• Medical Devices
• Quality control
• Monitoring
• Data Output
• Data Recording
  Accessories
• Front Panel / Rear Panel
• Sloping control panel
• 4 self-tapping screws for PCB mounting
• Carrying handle / tilt bar
 Stock Colors
Off-White: Pantone Cool Gray1C
Black: Pantone Black 7C 2X
See Page 39 for Color Chart

Fine textured surface
Custom Colors Available.
 Stock Material
High-impact ABS
(UL 94 HB).
Special materials available
 Insert Molding
Custom insert molding within recessed area can significantly reduce machining costs for many applications. Call for minimum quantities.
