DESIGN FEATURES
VERSATILE, ROBUST, FUNCTIONAL DESIGN
Desktop enclosure with optional slope panel and carrying handle. Compatible with aluminum panels on front and back.
Screw less assembly for quick internal access using a quick latch mechanism providing added flexibility for medical applications. PCB mounting bosses are located on the top and bottom. Insert areas for semi-custom tooling available on some models.
(BOTH ENDS OPEN). |
|
| Three Sizes |
| |
L |
W |
H |
| Small |
6.10" |
4.13" |
1.57" |
| Med. |
6.10" |
4.13" |
2.56" |
| Large |
6.10" |
4.13" |
3.54" |
Standard case

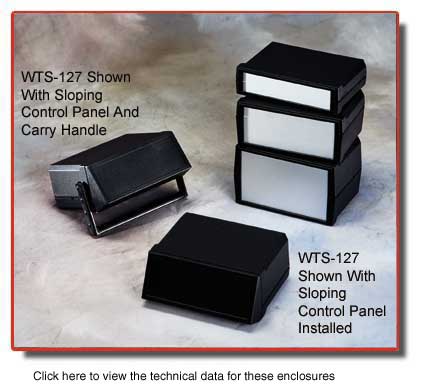

Standard case with tilt/carry handle bar
• Medical Devices
• Quality control
• Monitoring
• Data Output
• Data Recording
• Front panel/Rear panel
• Sloping control panel
• 4 self-tapping screws for PCB mounting
• Tilt / Carry handle
• Self-adhesive non-slip feet/see page 35
| Sloping Control Panel |
| Sloping control panel for
WTS-117 and WTS-137 available on special request. |
| Stock Colors |
Off-White: Pantone Cool
Gray 1C
Black: Pantone Black 7C 2X
Gray: Pantone Cool Gray 10C
Special Order
See Page 39 for Color Chart
Fine textured surface
Custom colors available. |
| Stock Material |
High-impact ABS (UL 94 HB)
High-impact ABS (UL 94 VO)
Special materials available.
|
