DESIGN FEATURES
VERSATILE, ROBUST, FUNCTIONAL DESIGN

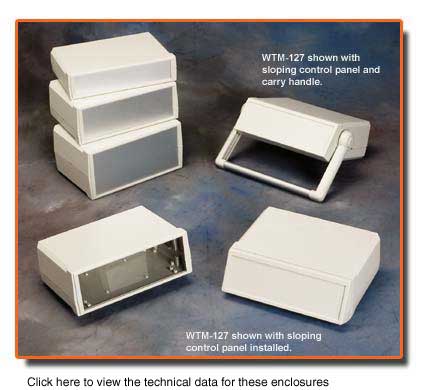

Desktop enclosure with optional slope panel and carrying handle. Compatible with aluminum panels on front and back.
Screw less assembly for quick internal access using a quick latch mechanism providing added flexibility for medical applications. PCB mounting bosses are located on the top and bottom. Insert areas for semi-custom tooling available on some models.
(BOTH ENDS OPEN) |
| Dimensions and Part Numbers for
Medium Widetec Enclosures |
OUTSIDE DIMENSIONS
L x W x H
in Inches |
COLOR |
SHELL CONFIGURATION |
CASE
PART NUMBER |
| 8.07" x 5.51" x 1.97" |
Off-White or Black |
Short / Short |
WTM-117 |
| 8.07" x 5.51" x 2.95" |
Off-White or Black |
Short / High |
WTM-127 |
| 8.07" x 5.51" x 3.94" |
Off-White or Black |
High / High |
WTM-137 |
| Specify Version and Color when ordering. |
| ACCESSORIES |
| ARTICLE |
COLOR |
VERSION / APPLICATION |
PART NUMBER |
| Aluminum Front Panel |
Anodized |
for short / short combination,
7.28" x 1.65" x 0.06" |
WTMP-100 |
| Aluminum Front Panel |
Anodized |
for short / high combination,
7.28" x 2.64" x 0.06" |
WTMP-110 |
| Aluminum Front Panel |
Anodized |
for high / high combination,
7.28" x 3.62" x 0.06"
|
WTMP-120 |
| Sloping Control Panel |
Specify |
for use with WTM-127 case only |
WTMP-167 |
| Set of Screws |
Silver |
4 pieces ø 0.10" x 0.24" for fixing PCB’s |
ASC-04 |
|
| Three Sizes |
| |
L |
W |
H |
| Small |
8.07" |
5.51" |
1.97" |
| Med. |
8.07" |
5.51" |
2.95" |
| Large |
8.07" |
5.51" |
3.94" |
Standard case
Standard case with tilt/carry handle bar
• Medical Devices
• Quality control
• Monitoring
• Data Output
• Data Recording
• Front panel/Rear panel
• Sloping control panel
• 4 self-tapping screws for PCB mounting
• Tilt / Carry handle
• Self-adhesive non-slip feet/see page 35
| Stock Colors |
Off-White: Pantone
Cool Gray 1C
Black: Pantone Black 7C 2X
Gray: Pantone Cool Gray 10C Special Order
See Page 39 for Color
Chart
Fine textured surface
Custom colors available. |
| Stock Material |
High-impact ABS (UL 94
HB)
High-impact ABS (UL 94 VO)
Special materials available. |
| Sloping
Control Panel |
Sloping control panel for
WTM-117 and WTM-137 available on special request.
|
