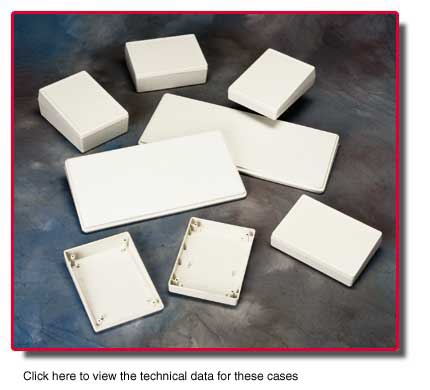

Keyboard Enclosures

22


DESIGN FEATURES
Low profile designs. Two-part cases assembled with self-tapping screws. Screw bosses for PCBs in top and base sections. Great for desk top or wall-mounting. Recessed area and insert tooling offer additional flexibility.





 Application
Housings for extra large and small keyboard applications. Data collection, control, monitoring and medical diagnostics equipment.
 Version I
Control area recessed by 0.03" for membrane keyboards.
 Version II
Insert area flexibility.
 Stock Colors
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
See Page 39 for Color Chart
Custom colors available
 All cases in a fine textured surface.
 Stock Material
ABS (UL 94 HB)
ABS (UL 94 VO)
 Insert Molding
Custom insert molding within recessed area can significantly reduce machining costs for many applications. Call for minimum quantities.

Modifications Per Customers Requirements and Technical Information
-For accessory information turn to page 35
-For machining information turn to page 37
-For shielding information turn to page 38
-For screen printing information turn to page 39
-For material properties turn to page 41
-For NEMA / IP protection classifications turn to page 40
-For color information turn to page 39

Dimensions and Part Numbers for Keyboard Enclosures
VERSION OUTSIDE DIMENSIONS
L x W x H
in Inches
COLOR SLOPE
DIRECTION
 CASE
PART NUMBER

I

5.43" x 7.48" x 2.09"/1.24"  Off-White LONG SESL-007
I 5.43" x 7.48" x 2.09"/1.24"  Black LONG SESL-009
I 5.43" x 7.48" x 2.99"/2.14" Off-White or Black LONG SEDL-008

I

7.48" x 5.43" x 1.85"/1.24" Off-White  SHORT SESS-007
I 7.48" x 5.43" x 1.85"/1.24"  Black SHORT SESS-009
I 7.48" x 5.43" x 2.75"/2.14" Off-White or Black SHORT SEDS-007
II 14.57" x 7.28" x 1.48" Off-White SHORT KBS-007
II 17.56" x 7.48" x 1.50" Off-White SHORT KBL-007
