EAI

Universal Enclosures & Plug Cases

 21


DESIGN FEATURES
Two-piece versatile design. Fastening bosses for PCB mounting. Solid tongue-and-groove construction. Case supplied with 4 assembly screw and 4 PCB mounting screws.




 Version I
Standard case. Screw bosses for mounting PCB’s with self-tapping screws.
 Version II
Same as Version I but with handle/tilt bars.
 Version III
Same as Version I but with Carry Handle/Tilt Bar. Made from fire retardant ABS (UL 94 VO) material.
 Speaker Grill Option
Part #UNI-20066 is also available with a top speaker grill.
 Version IV
Same as Version I but with built-in wall plug. Made from fire retardant ABS (UL94VO) material.
 Assembly
Enclosure assembled by self-tapping screws or with four M3 screws or fast snap-lock.
Wall-mounting accessory available.
 Stock Colors
Off-White: Pantone Cool Gray 1C
Black: Pantone Black 7C 2X
Gray: Pantone 413C
See Page 39 for Color Chart
Custom colors available
 All cases in a fine textured surface.
 Stock Material
ABS
(UL 94 HB)
(UL 94 VO)
Also available in other materials to special order
 Fast Snap Lock Option
Allows for quick cover removal when wall-mounted or secured to any surface.

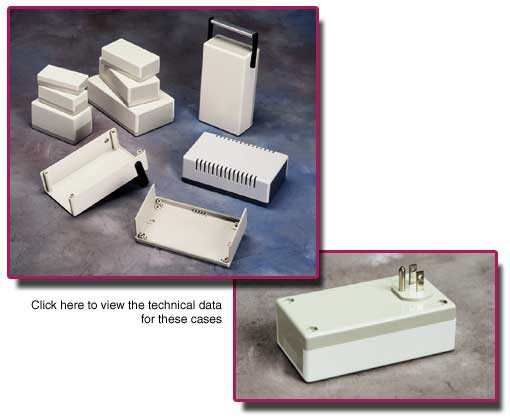

 Universal Enclosure Standard Cases, Versions I, II and III
VERSION OUTSIDE DIMENSIONS
L x W x H in Inches 		 MATERIAL CASE
PART NUMBER
I 3.93" x 1.96" x 0.98" ABS (UL 94 HB) UNI-10066
I 3.93" x 1.96" x 0.57" ABS (UL 94 HB) UNI-11066
I 4.72" x 2.55" x 1.57" ABS (UL 94 HB) UNI-20066
I 4.72" x 2.55" x 2.55" ABS (UL 94 HB) UNI-21066
I 5.90" x 3.14" x 1.96" ABS (UL 94 HB) UNI-30066
II/Handle 5.90" x 3.14" x 1.96" ABS (UL 94 HB) UNI-30166
I 7.44" x 4.33" x 2.36" ABS (UL 94 HB) UNI-40066
II/Handle 7.44" x 4.33" x 2.36" ABS (UL 94 HB) UNI-40166
III 7.44" x 4.33" x 2.36" ABS (UL 94 VO) UNI-40288


 Plug Cases - US, British and French

VERSION

 OUTSIDE DIMENSIONS
L x W x H in Inches

 COUNTRY VERSION

CASE
PART NUMBER

IV

 3.93" x 1.96" x 1.57" US Plug Type  UNI-11387

IV

 4.72" x 2.55" x 1.57" US Plug Type UNI-20387

IV

 4.72" x 2.55" x 2.55" US Plug Type UNI-21387

IV

 3.93" x 1.96" x 1.57" British Plug Type UNI-11388
IV 4.72" x 2.55" x 1.57" British Plug Type UNI-20388
IV 4.72" x 2.55" x 2.55" British Plug Type UNI-21388
IV 3.93" x 1.96" x 1.57" French Plug Type UNI-11389
IV 4.72" x 2.55" x 1.57"  French Plug Type UNI-20389
IV 4.72" x 2.55" x 2.55" French Plug Type UNI-21389


Plug configurations available for all other countries. Call for details!





Enclosures of America International
28045 Ashley Circle #106 Libertyville, IL 60048 U.S.A.
Phone: (847) 918-9800     Fax: (847) 918-9807

© 2004 EAI
