EAI

Data-Terminal

30


DESIGN FEATURES
  • EAI case system for table-top units and wall-mounting for a multitude of applications.
  • Ergonomic design with 20° inclined recessed area is a real asset when reading instrumentation displays.
  • Data terminals include: one basic housing top and bottom, self-tapping screws for assembly, rubber feet and sealing kit.

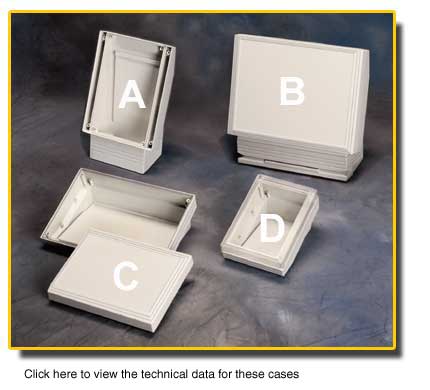

Dimensions and Part Numbers for Data-Terminals
VERSION OUTSIDE DIMENSIONS
L x W x H
in Inches
CASE PART NUMBER
I (A) 10.71" x 6.61" x 3.98" DTC-001
I (B) 10.71" x 11.89" x 3.98" DTC-004
I (C) 7.08" x 10.39" x 3.38" DTC-007
I (D) 7.08" x 5.12" x 4.13" DTC-008
Call for information
on these additional
options
• Wall-mount systems
• Barcode reader covers
• Clear polycarbonate covers
• Aluminum covers



 Version I
Basic housing, with standard cover.
 Stock Colors
Cases: Off-White
Covers: Off-White Plastic
See Page 39 for Color Chart
Custom colors available
upon request.
 Stock Material
ABS (UL 94 HB)
ABS (UL 94 VO)
Other materials available
upon request.
 Application
DESKTOP:
• Data collection on the job
• Swipe card systems
• Data monitoring
• Communication control
• Remote activation
• Credit card systems
• Large LED/LCD applications

WALL-MOUNT:
• Control systems
• Security
• Timing systems
• HVAC control
• Process Control
• Reactor control
• Aerospace diagnostics
 Insert Molding
Custom insert molding within recessed area can significantly reduce machining costs for many applications. Call for minimum quantities.
 Protection Class
• Protection class IP 54
• NEMA 4
