DESIGN FEATURES
SEALED, DURABLE, DESKTOP OR WALL-MOUNT

The first standard case for the logging of operational data. The case system DATA-TERMINAL offers totally new alternatives to all applications.
  • EAI case system for table-top units and wall-mounting cases for a multitude of applications.
  • Ergonomic shape. Operating area inclined by 20. A real asset when reading instrumentation displays.
  • DATA-TERMINAL cases are designed to save you time and money by being easy to assemble and service. The design is very attractive with all assembly screws being hidden from view. Screw bosses for PCB mounting.
  • Recessed control area for membrane keyboards. Flat areas for machining and cutouts. Invisible wall-mounting. Insertion options for standardized pocket-size scanners.

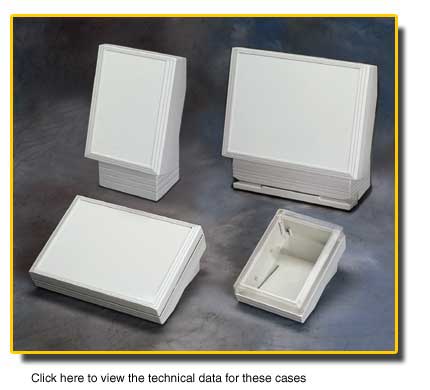

  • Available in two versions with two sizes of each.





 Application
DESKTOP:
Data collection on the job
Swipe card systems
Data monitoring
Communication control
Remote activation
Credit card systems
Large LED/LCD applications

WALL-MOUNT:
Control systems
Security
Timing systems
HVAC control
Process control
Reactor control
Aerospace diagnostics

 Protection Class
Protection class IP 54
NEMA 4
 Notes
Rear cover with slots can be fitted with pull-through and bar code readers. We can supply a list of card readers and manufacturers.
 Stock Colors
Off-White: Pantone Cool Gray 1C
See Page 39 for Color Chart
Custom colors available upon request.
 Stock Material
ABS (UL 94 HB) or (UL 94 VO)
Transparent cover in PC
Other materials available upon request.

 Insert Molding
Custom insert molding within recessed area can significantly reduce machining costs for many applications. Call for minimum quantities.
