DESIGN FEATURES
SLOPING, DURABLE, LARGE INTERNAL AREA.
High quality desktop or wall-mount enclosure with PCNB mounting bosses on top and bottom, supplied with 4 self-tapping assembly screws
- The desk case range covers many different applications in industry, medical laboratories and office environments.
- 6 sizes
- Sloping top sections with opening for aluminum front panels (accessories)
- Screw bosses for PCB’s on top and bottom
- Recessed area available on some models
- Knockouts for wall-mounting
- Raised rear section for installation of grommets and connectors
|
|

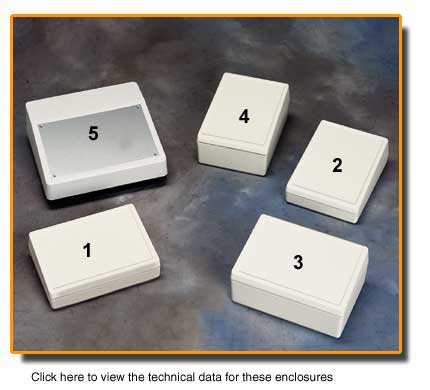

| Six
Sizes |
| |
L |
W |
H |
| Size 1 |
7.48" |
5.43" |
1.85"/1.28" |
| Size 2 |
5.43" |
7.48" |
2.09"/1.26" |
| Size 3 |
7.48" |
5.43" |
2.75"/2.14" |
| Size 4 |
5.43" |
7.48" |
2.99"/2.14" |
| Size 5 |
8.98" |
8.50" |
2.99"/1.97" |
| Size 6 |
8.66" |
6.14" |
3.94"/2.05" |
| Application |
• Test and measurement
• Control systems
• Process controls
• Medical systems
• Display systems
• Security systems |
| Version
I |
| With recessed area. |
| Version
II |
With clear anodized
aluminum top panel/accessory.
Off-White: Pantone Cool Gray 1C
Gray: Pantone Cool Gray 10C
See Page 39 for Color Chart
Custom Colors Available
ABS (UL 94 HB).
ABS (UL 94 VO)
Also available in other materials to special order
• Clear anodized aluminum top panel
• Self-adhesive rubber feet/see page 35
Custom insert molding within recessed area can significantly reduce machining costs for many applications. Call for minimum quantities.
|
